- Lightweight Aluminum Ball Head
- 11 lb Load Capacity
- Arca Type-Compatible Quick Release Clamp
- 1/4"-20 and 3/8"-16 Tripod Attachment
- 360° Panning
Quick Overview
- Weighs just 138g (0.3lbs)
- CNC Machine Aluminium Alloy
- Hard anodised finish for durability
- Supports 5kg (11lbs) load capacity
- 25mm ball diameter
- ARCA / RSS Compatible quick release clamp
- 360° panning for panoramic images
Product Description

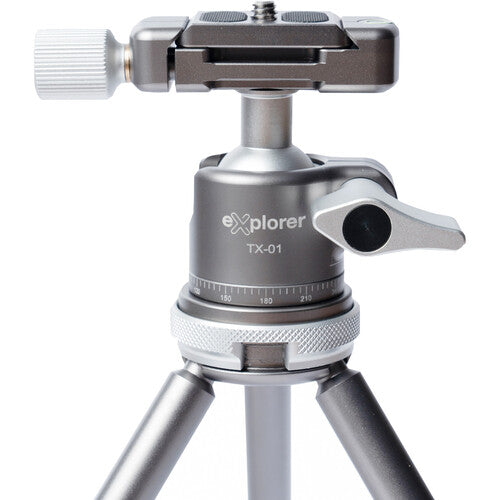

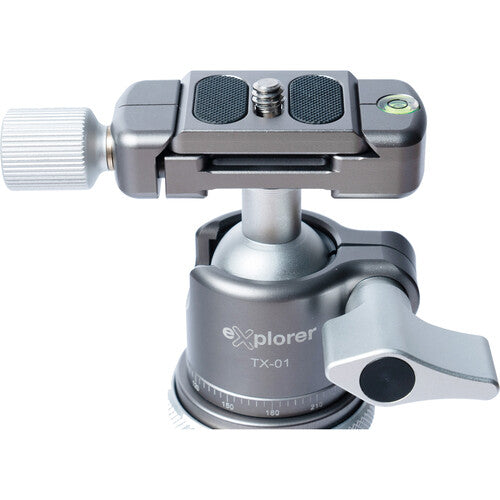

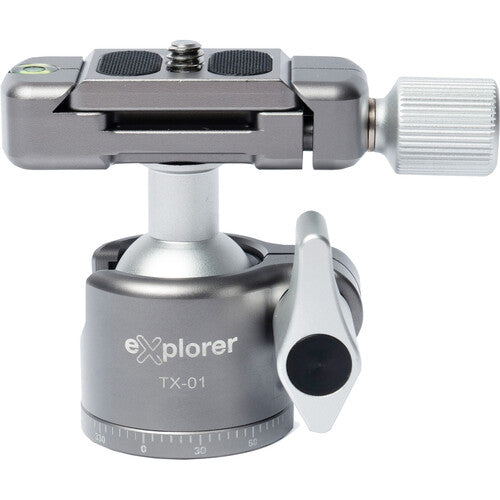

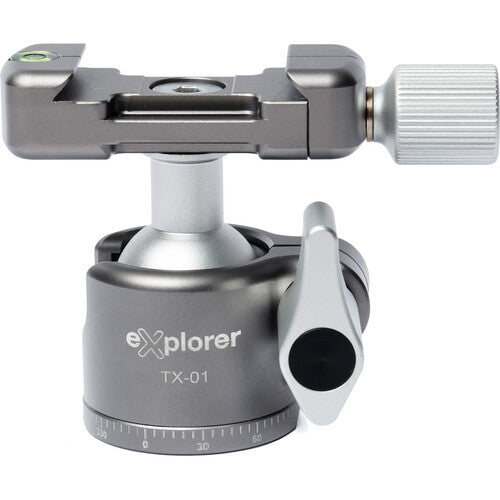

Save weight in your photography kit while traveling or hiking without compromising quality or functionality with the Explorer TX-01 Travel Explorer Ball Head.
The lightweight CNC machined aluminum alloy design weighs a total of 138g (0.3lbs) while supporting up to 5kg (11lbs) of gear – enough support and stability for larger camera bodies with telephoto lenses such a 70-200mm from most major manufacturers – and still compact enough to make it convenient to carry for supporting mobile phone brackets and other photography or videography accessories.

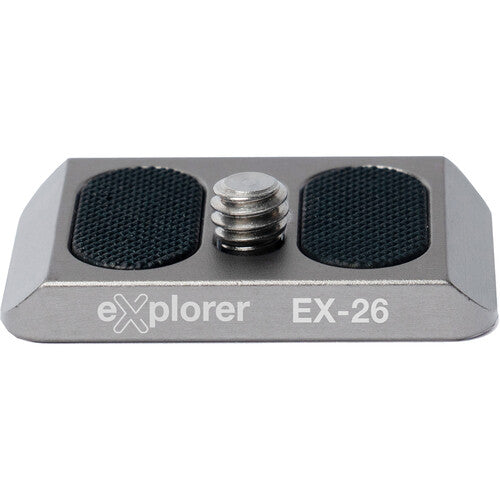

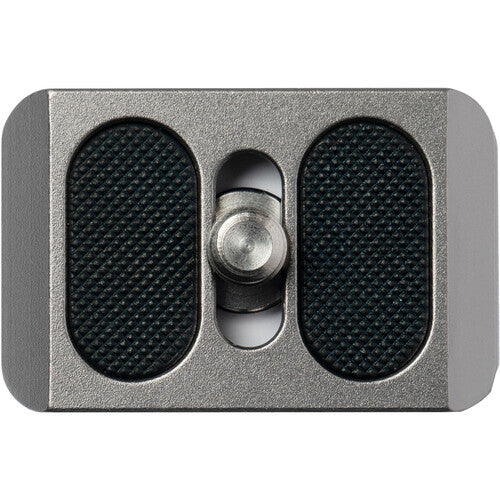

The TX-01 Travel Explorer Ball Head is fitted to tripods via a 3/8” screw. It has a 25mm diameter ball head with a 90° notch for fast and accurate switching between vertical and horizontal compositions. The box includes an Explorer EX-26 ARCA / RSS compatible base plate and 1/4”-3/8” adapter for fitting to many standard tripods on the market.
The ball head has a 360° panning base with scale marks to assist with shooting and stitching panoramic images and solid aluminum knobs and clamps for durability and ease of use in various conditions.
| Packaged Weight | 0.48 lbs |
|---|---|
| Packaged Dimensions | 4.72 × 3.15 × 2.76 in |
| Max Load (kg) | 5kg |
| Product Weight (kg) | 0.138kg |
| Base Diameter (mm) | 36mm |
| Ball Diameter (mm) | 25mm |
| In The Box | Explorer Photo & Video TX-01 Travel Explorer Ball Head Quick Release Plate with 1/4"-20 Screw 1/4"-20 to 3/8"-16 Adapter Limited 2-Year Warranty |
|---|---|
| MFG Part# | TX-01 |
| Condition | New |
