- Slim, Lightweight, Low-Profile Design
- 5.2" 1920 x 1080 Capacitive Touchscreen
- High 1500 cd/m² Brightness
- 4K HDMI Input, HDR/HLG/PQ Support
- USB PD Power, USB-C/LANC Camera Control
Quick Overview
- Slim, Lightweight, Low-Profile Design
- 5.2" 1920 x 1080 Capacitive Touchscreen
- High 1500 cd/m² Brightness
- 4K HDMI Input, HDR/HLG/PQ Support
- USB PD Power, USB-C/LANC Camera Control
- AtomHDR Mode with 10-Stop Dynamic Range
- Built-In and USB Calibration Support
- Single Sony L-Series Battery Slot
Product Description
Camera Control
The USB-C port enables control of the latest mirrorless and DSLR cameras from Canon, Panasonic, Sony, and Z CAM's E2 line. Additionally, a 2.5mm LANC port provides extended control options. Future firmware updates will expand support to include FUJIFILM, Nikon, OM System, and Sigma cameras.

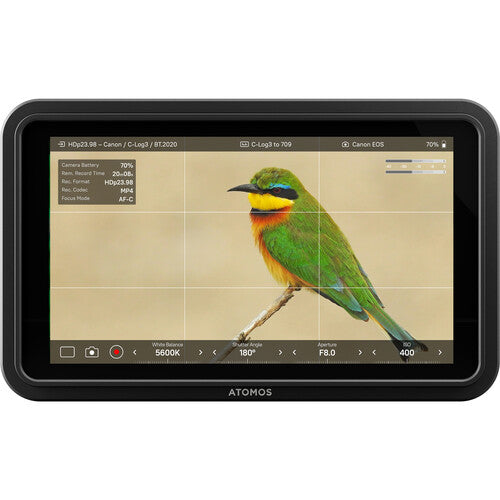

Camera Status

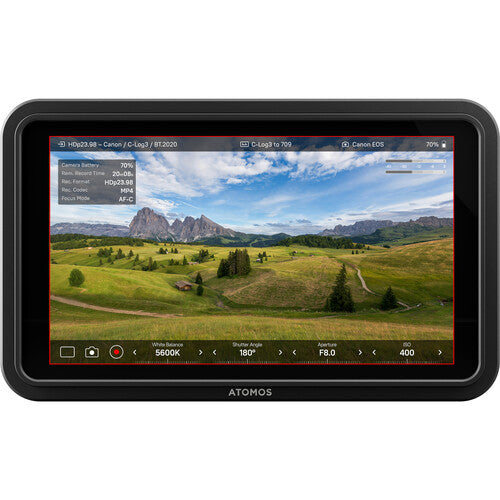

A camera status indicator displays internal record settings, battery life, and remaining recording time. A red edge highlight shows when the camera is recording, whether triggered by the camera or the Shinobi II.
AtomOS 11 & Advanced Image Tools
Featuring the latest AtomOS 11, the Shinobi II offers an intuitive layout and a variety of new tools. Adjust your camera's aperture, shutter speed/angle, and ISO using built-in exposure tools like false color, waveforms, zebras, and histogram to achieve perfect exposure every time.

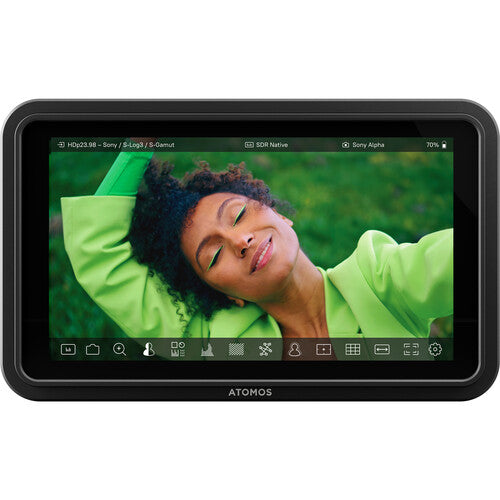

Brighter Display
The 5.2" touchscreen display boasts 50% more brightness than its predecessor, with 1500 cd/m² peak brightness for easy visibility indoors and in bright sunlight.
Input Signals
The Shinobi II's HDMI 1.4 input supports various resolutions and frame rates, including DCI/UHD 4K30 and 1080p60.
HDR and LUT Support
Preview your camera's Log output in HDR with HDR HLG and HDR PQ monitoring modes, or upload up to eight custom LUTs to preview your shots with your preferred looks.
Frame Guides
Built-in frame guides cater to both cinematic and social media content creation, with presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, and 3:2 aspect ratios.

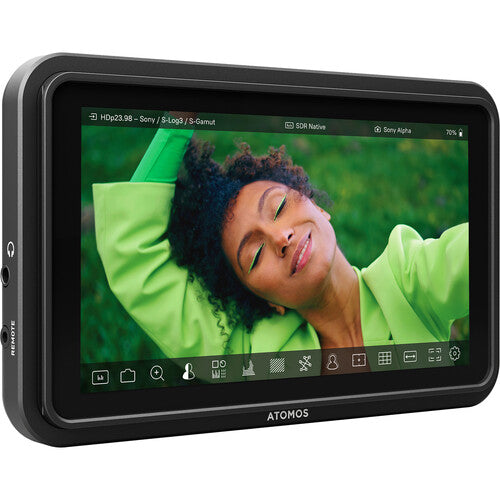

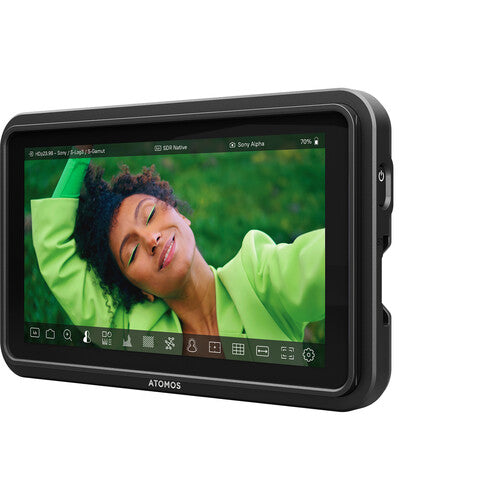

Lightweight Design

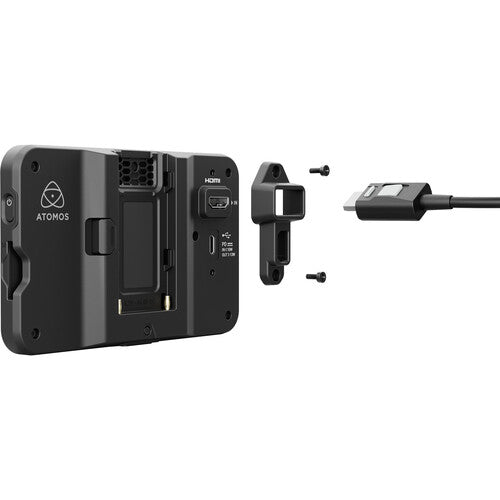

Weighing only 7.4 oz, the Shinobi II features a slimmer profile with additional locating holes and 1/4"-20 threads for secure mounting. The centrally positioned L-series battery plate enhances balance and maneuverability. The included HDMI/USB-C locking adapter is compatible with Atomos' new locking cables, preventing accidental disconnects.

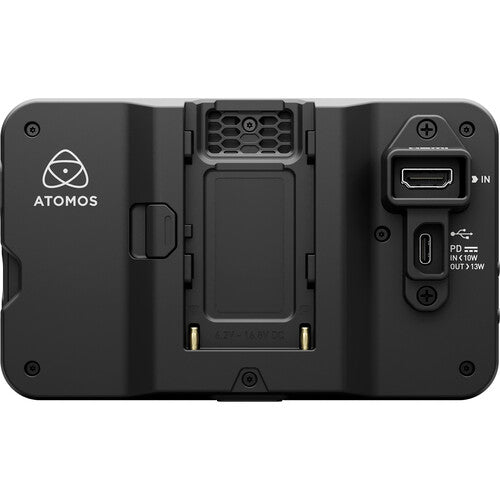

Power Options
The Shinobi II can be powered through various methods, including an L-series/NP-F style battery, an optional dummy battery with a DC barrel to D-Tap cable, or a USB-C PD charger with a 10W input. Additionally, the USB-C PD 13W output allows you to charge or power your camera while using the monitor's camera control features.
Atomos Shinobi II Specs
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes, Hybrid Log Gamma |
| Video I/O | 1x HDMI 1.4 Input |

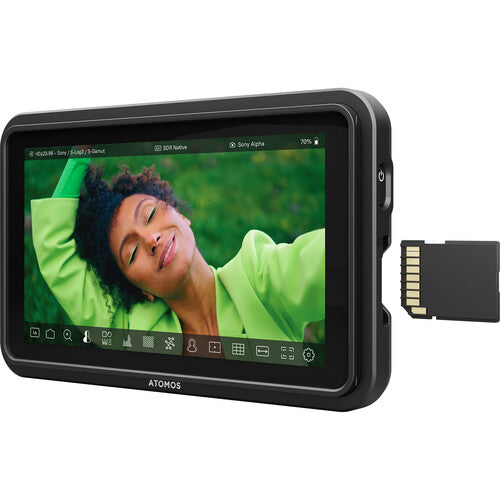

| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) |
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 |
| Battery Type | 1x L-Series |
| Power Consumption | 10 W (Typical) 13 W (Maximum) |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | Yes, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 423 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI 1.4 Input |
| HDCP Support | No |
| Embedded Audio | HDMI: 2-Channel |

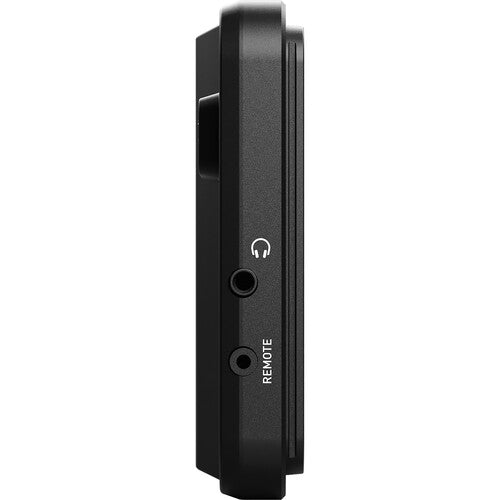

| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input/Output |
| Other I/O | 1x 2.5 mm (LANC) Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 |
| Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, REDlogFilm, REDWideGamutRGB, Sony S-Log, Sony S-Log 2, Sony S-Log 3, V-Log |
| Input Power | 6.2 to 16.8 VDC |
| Battery Type | 1x L-Series |
| Power Consumption | 10 W (Typical) 13 W (Maximum) |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| Environmental Resistance | No |
| Operating Temperature | 104°F / 40°C |
| Material of Construction | Polycarbonate |
| Dimensions | 5.9 x 3.6 x 0.8" / 151 x 91.5 x 20.8 mm |
| Weight | 7.4 oz / 210 g |
| Package Weight | 0.995 lb |
| Box Dimensions (LxWxH) | 7.7 x 5.1 x 2.4" |
| In The Box | Atomos Shinobi II 5.2" HDMI HDR Monitor, USB-C 2.0 Cable, HDMI/USB-C Locking Cable Adapter, Limited 1-Year Manufacturer Warranty |
|---|
