- 3-Light Kit with Carrying Case
- For Studio & Film/TV Production
- Output: 5070 Lux at 3.3' (5600K, 45°)
- 3200-6500K; Bi-Color Control
- 10.5 x 8.2"; AC/DC Operation
- CRI 95 | TLCI 97 | SSI 84 (Tungsten)
Quick Overview
- 3-Light Kit with Carrying Case
- For Studio & Film/TV Production
- Output: 5070 Lux at 3.3' (5600K, 45°)
- 3200-6500K; Bi-Color Control
- 10.5 x 8.2"; AC/DC Operation
- CRI 95 | TLCI 97 | SSI 84 (Tungsten)
- On-Board and Bluetooth Control
- Fan Cooled
- 0-100% Dimming, 4 Lighting Effects
- Includes Softboxes, Grids, Carrying Case
Product Description

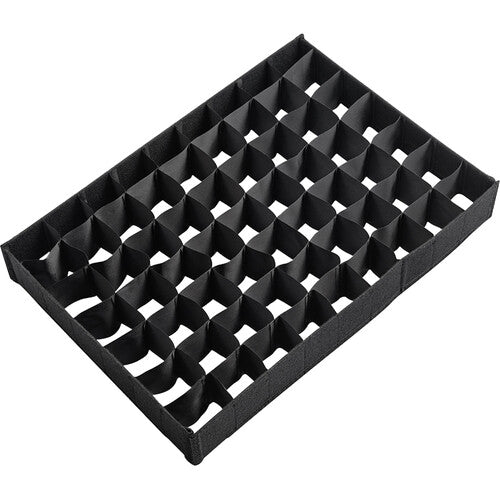

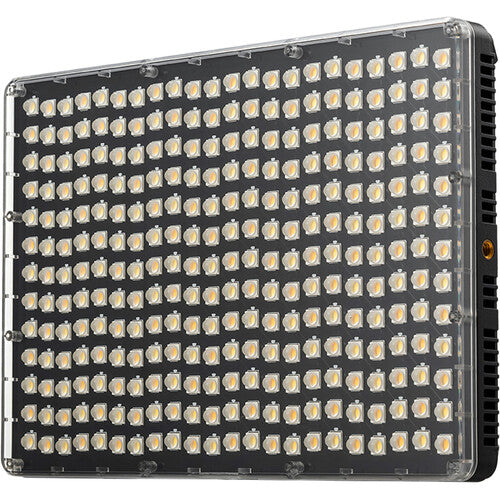

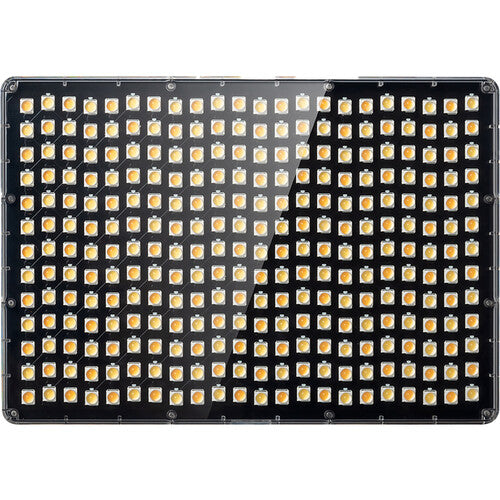

The P60x has expansive flexibility and control features and this P60x Bi-Color LED Panel 3-Light Kit from amaran triples those benefits. The kit includes three P60x panels, each with a power adapter, a softbox, and a grid to eliminate spill light and add the directional control needed for selective lighting. The P60x offers an expansive color temperature range of 3200 to 6500K with an impressive CRI rating of 95.

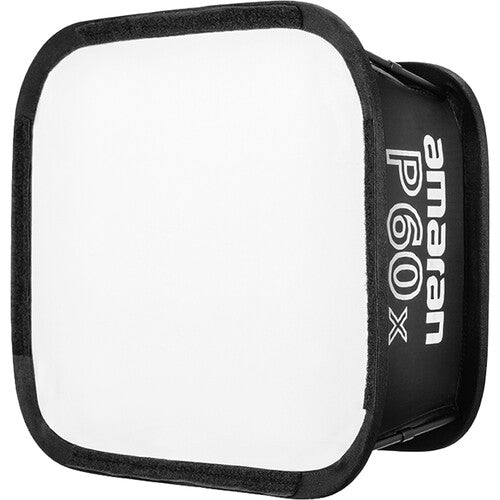

The P60x is dimmable from 0 to 100% without flicker or color shift. Besides user-programmable presets, the P60x has four special effects including Paparazzi, Strobe, Fireworks, and Pulse. A softbox is included to soften the bright LEDs as is a grid to enable selective lighting. All of these adjustments can be made locally on the unit or wirelessly from up to 262' away with your smartphone and the Sidus Link app. The P60x is ready for worldwide use thanks to its 100 to 240 VAC power supply but it can also run on NP-F batteries when AC power is unavailable.
| Item Type | 1 x LED Light Panel |

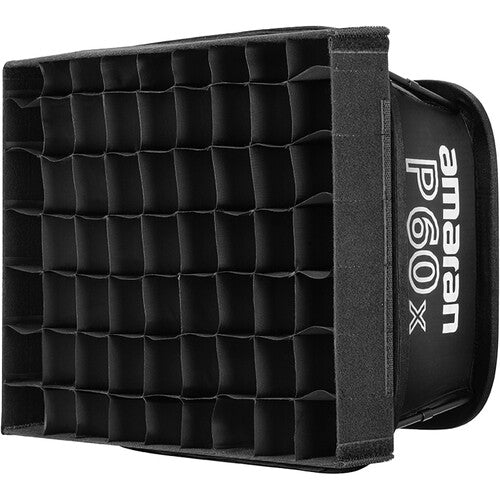

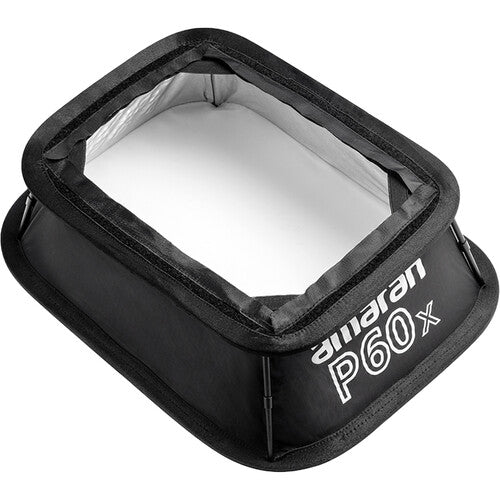

| Included Light Modifier | 1 x Softbox with Removable Grid |

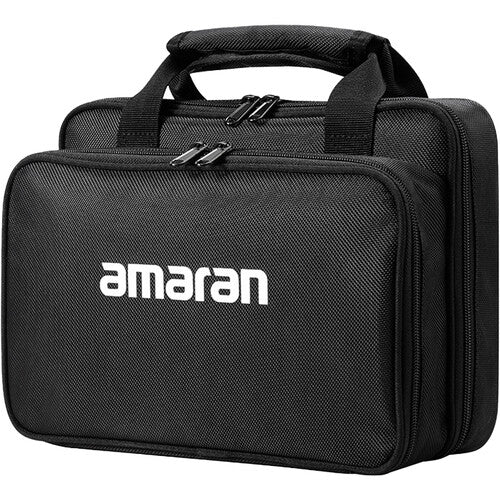

| Included Storage Case | 1 x Case |
| Photometrics | 45° at 3200K: 451 fc / 4860 Lux at 3.3' / 1 m 45° at 4300K: 458 fc / 4940 Lux at 3.3' / 1 m 45° at 5600K: 471 fc / 5070 Lux at 3.3' / 1 m 45° at 6500K: 481 fc / 5180 Lux at 3.3' / 1 m 69 fc / 750 Lux at 9.8' / 3 m |
| Color Temperature | 3200 to 6500K |
| Color Modes | Daylight, Tungsten |
| Color Accuracy Standard | CRI 95 TLCI 97 CQS 95 SSI 84 TM-30 Rf 93 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Beam Angle | 45° |
| Front Accessory Mount | Proprietary |
| Wireless Remote Control Type | Bluetooth |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |

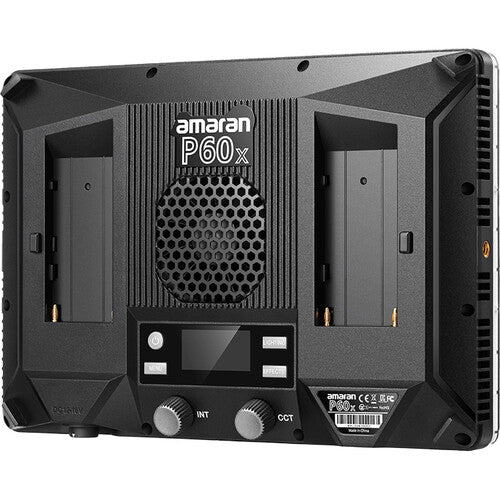

| Battery Plate Type | 2 x Sony L-Series / NP-F (Built-In) 1 x Gold Mount (Not Included) 1 x V-Mount (Not Included) |
| Battery | 2 x Rechargeable, 6.5 to 8 VDC (Not Included) or 1 x Rechargeable, 12 to 16.8 VDC (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 15 VDC |
| Power Consumption | 78 W |
| Fixture Mounting | Not Specified by Manufacturer |
| Item Type | 1 x LED Light Panel |
| Included Light Modifier | 1 x Softbox with Removable Grid |
| Included Storage Case | 1 x Case |
| Photometrics | 45° at 3200K: 451 fc / 4860 Lux at 3.3' / 1 m 45° at 4300K: 458 fc / 4940 Lux at 3.3' / 1 m 45° at 5600K: 471 fc / 5070 Lux at 3.3' / 1 m 45° at 6500K: 481 fc / 5180 Lux at 3.3' / 1 m 69 fc / 750 Lux at 9.8' / 3 m |
| Color Temperature | 3200 to 6500K |
| Color Modes | Daylight, Tungsten |
| Color Accuracy Standard | CRI 95 TLCI 97 CQS 95 SSI 84 TM-30 Rf 93 |
| Cooling System | Fan |
| Dimming | Built-In Dimmer • 0 to 100% |
| Beam Angle | 45° |
| Built-In Flash | No |
| Umbrella Mount | Yes |
| Front Accessory Mount | Proprietary |
| Wireless Remote Control Type | Bluetooth |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link *As of October, 2021: Check with manufacturer for the most up-to-date compatibility |
| Wireless Range | 262.5' / 80 m |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |
| Inputs/Outputs | 1 x Proprietary Power Input |
| Battery Plate Type | 2 x Sony L-Series / NP-F (Built-In) 1 x Gold Mount (Not Included) 1 x V-Mount (Not Included) |
| Battery | 2 x Rechargeable, 6.5 to 8 VDC (Not Included) or 1 x Rechargeable, 12 to 16.8 VDC (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 15 VDC |
| Included Adapter / Cable | 1 x Edison Plug to Proprietary AC to DC Adapter • 15 VDC |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 78 W |
| Fixture Mounting | Not Specified by Manufacturer |
| Included Adapter | 1 x Swivel Mount: 5/8" Receiver to 5/8" Receiver 1 x 5/8" Stud with 1/4"-20 Male Screw |
| Environmental Protection | No |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Display | OLED |
| Certifications | CE, cTUVus, FCC, RoHS |
| Dimensions | 10.7 x 8.4 x 1.7" / 27.2 x 21.3 x 4.3 cm (Fixture) |
| Weight | 4.15 lb / 1.88 kg |
| Package Weight | 22.325 lb |
| Box Dimensions (LxWxH) | 21.7 x 13.2 x 9.8" |
| In The Box | amaran P60x Bi-Color LED Light Panel (3-Light Kit) |
|---|---|
| MFG Part# | APA0138A11 |
| Condition | New |
